RM1,599.00 RM1,980.00

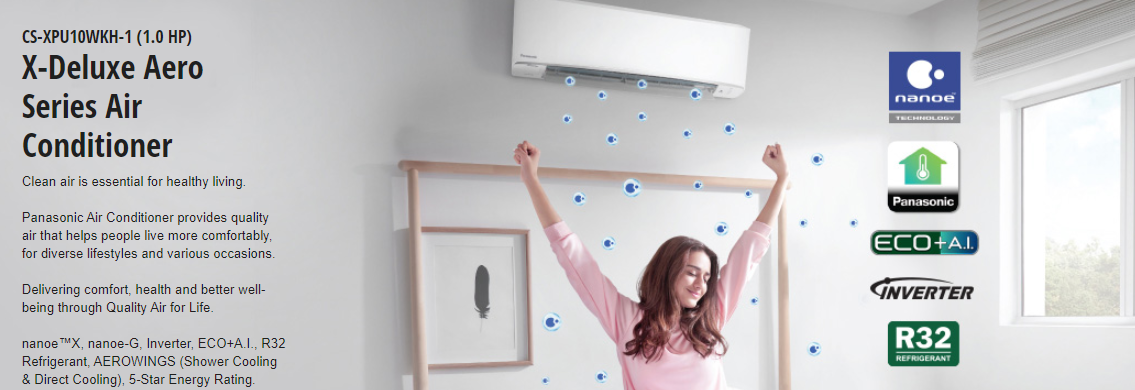

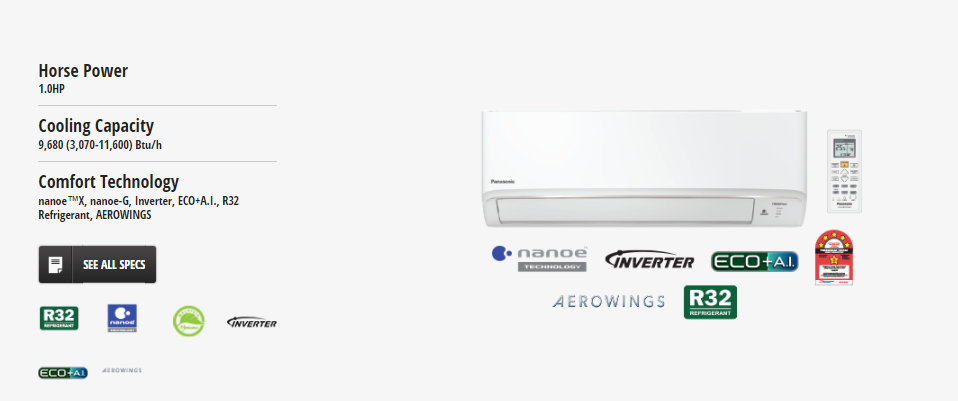

Panasonic Air Cond 1.0HP X-Deluxe inverter R32 Air Conditioner CSXPU10WKH
Price RM1,599.00 RM1,980.00
Brand Panasonic
Size (L x W x H) 35 cm x 83 cm x 83 cm
  • Standard installation for 1.0HP air conditioner
  • Up to 6ft copper piping (standard exposed, non conceal)
  • Up to 6ft drainage hose (standard exposed, non conceal)
  • Up to 6ft wiring to the nearest plug point (standard exposed, non conceal

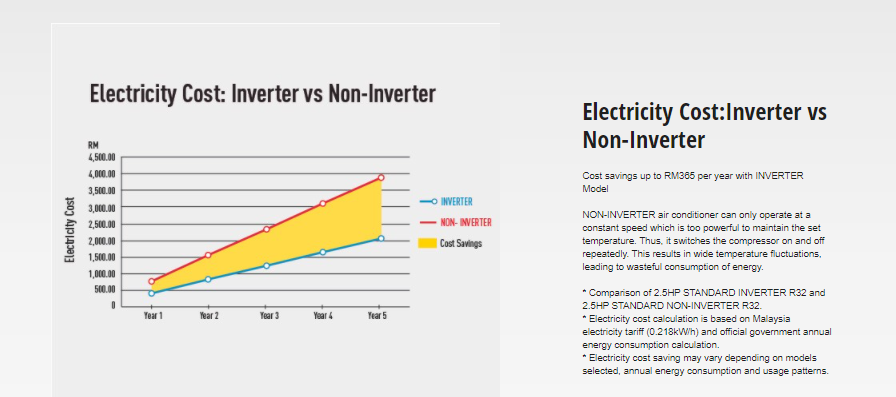

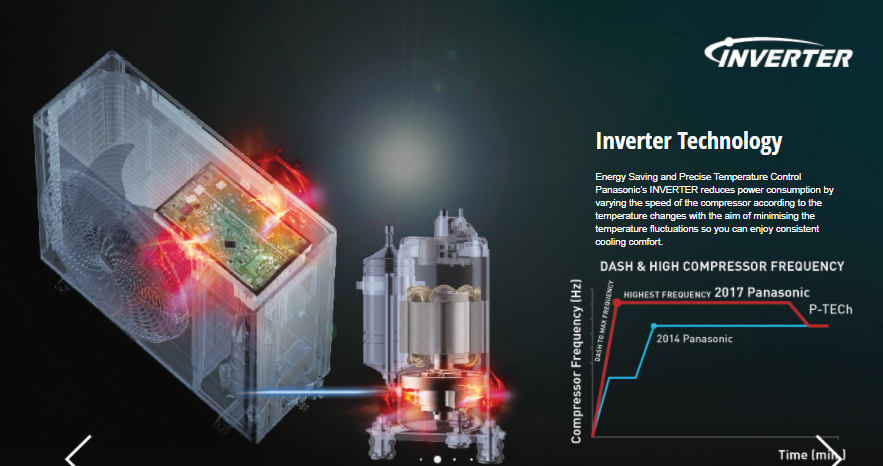

  • 1.0hp Inverter Technology
  • R32 refrigerant type
  • ECO + Ai (Intelligenty Balances Energy Savings and Comfort)
  • Panasonic 's most Advanced Air Purification System
  • 24hours Purification with nanoe Technology
  • Nanoe-X (PM2.5) & Nanoe-G Dust Sensor(air purification system)
  • Aerowings
  • 5 Star Energy Rating
  • 9,680Btu(3,070 - 11,600Btu)
  • Wide And Long Air Flow Vane
  • Vertical Swing
  • 24Hr On/Off Real Setting Timer
  • Blue Fin Condenser
  • Lcd Wireless Remote Controller
  • Network Adapter (Optional)
  • Indoor Dimension(mm) : D209 x W779 x H290 - (8kg)
  • outdoor Dimension(mm) : D230 x W650 x H511 - (18kg)
  • 1 Year Local Manufacturer Warranty
  • 5 year warranty for compressor
ModelIndoor (50Hz)CS-XPU10WKH-1
Outdoor (50Hz)CU-XPU10WKH-1
Refrigerant TypeR32
Cooling Capacity(min-max) kW2.84 (0.90-3.40)
(min-max)Btu/h9,680 (3,070-11,600)
EER(min-max) Btu/hW13.26 (13.64-11.26)
(min-max) W/W3.89 (4.00-3.30)
Electrical DataVoltage (V)230
Running Current (A)3.3
Power Input (W)730 (225-1,030)
Moisture RemovalL/h1.7
Air CirculationIndoor m³/min (ft³/min)10.3 (365)
Outdoor m³/min (ft³/min)27.6 (970)
Noise LevelIndoor (H/L/Q-Lo) (dB-A)38/26/19
Outdoor (H / L) (dB-A)47
DimensionsHeight (mm)290 (511)
Height (inch)11-7/16 (20-1/8)
Width (mm)779 (650)
Width (inch)30-11/16 (25-19/32)
Depth (mm)209 (230)
Depth (inch)8-1/4 (9-1/16)
Net WeightIndoor kg (lb)8 (18)
Outdoor kg (lb)18 (40)
Refrigerant Pipe DiameterLiquid Side (mm)ø 6.35
Liquid Side (inch)¼
Gas Side (mm)ø 9.52
Gas Side (inch)3/8
Pipe ExtensionChargeless Pipe Length (m)7.5
Maximum Pipe Length (m)20
Maximum Elevation Length (m)15
Additional Refrigerant Gas* (g/m)10
Power SupplyIndoor
Cleaner Airnanoe™XYes
Anti-Dust CoatingNo
Dust SensorNo
Odour-Removing FunctionYes
Removable, Washable PanelYes
ComfortRadiant CoolingNo
ECO Mode with A.I.Yes
Temperature WaveNo
Inverter ControlYes
Powerful ModeYes
Quiet ModeYes
Soft Dry Operation ModeYes
Personal Airflow CreationNo
Airflow Direction Control (Up Down)Yes
Manual Horizontal Airflow Direction ControlYes
Convenience24-Hour Dual ON OFF Real Setting TimerYes
24-Hour ON OFF Real Setting TimerNo
LCD Wireless Remote ControlYes
Wireless LAN Remote Control For Internet ConnectionYes (Optional)
Wired Remote ControlYes (Optional)
ReliabilityRandom Auto Restart (32 Restart Patterns)Yes
Blue Fin CondenserYes
Long Piping (Numbers indicate the maximum pipe length)20m
Top-Panel Maintenance AccessYes
Self-Diagnostic FunctionYes
NOTECaution For CS-XPU10/XPU13/XPU18/XPU24/XPU28WKH-1 (Important) Please do not use copper pipes that are less than 0.6mm in thickness.
*When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.
Reviews (0)
view all
0 reviews
What's in the box
  • 1 x Panasonic Air Cond CSXPU10WKH 1.0HP X-Deluxe R32 Air Conditioner CS-XPU10WKH / CU-XPU10WKH,
  • 1 x Warranty Card
  • 1 x Remote Control
  • 1 x Olympic Beach Towel (FREE)
  • 1 x Olympic Multipurpose Bag (FREE)
  • 1 x User Manual
